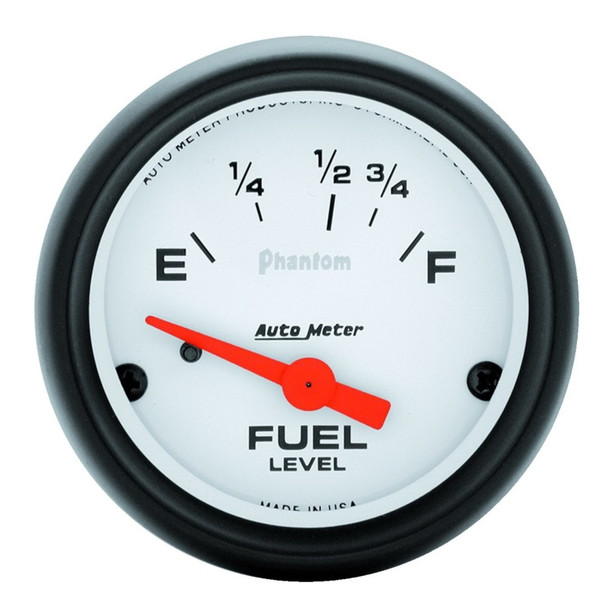

AutoMeter 5718 Phantom Electric Fuel Level Gauge

(No reviews yet) Write a Review

SKU:

BDHZ5718

UPC:

046074057182

MPN:

5718

Condition:

New

Width:

4.50 (in)

Height:

4.50 (in)

Depth:

4.75 (in)

Description
Warranty Information

Description

Fuel Gauge

Phantom Electric Fuel Level Gauge

Phantom Electric Fuel Level Gauge; 2-1/16 in.; White Dial Face; Fluorescent Red Pointer; White Incandescent Lighting; Electric Air-Core; 16 Ohms Empty /158 Ohms Full;

SPECIFICATIONS:

Analog Or Digital: Analog
Bezel Color: Black
Bezel Style: Super Bezel
Block Adapter Included: No
Bulb and Socket Number: 3220
Bulb Technology: Incandescent
Electric Or Mechanical: Electric
Face Color: White
Fuel Line Adapter Included: No
Gauge Adapter Included: No
Gauge Type: Fuel Level
Illuminated: Yes
Lens: Flat Clear
Light Covers Number: 3244/3215
Lighting Color: White Incandescent
Lighting Type: Incandescent
Liquid Filled: No
Mounting Bracket Number: 2230
Movement Type: Electric Air-Core
Number Color: Black
Outer Bezel Diameter: 2.250 in.
Pointer Color: Fluorescent Red
Size: 2.3125 in.
Sweep: Short
Voltage: 8-18 V
WARNING CA Proposition 65: Yes
WARNING CA Proposition 65 Message: WARNING: This product can expose you to chemicals; which are known to the State of California to cause cancer. For more information; visit www.p65warnings.ca.gov.

FEATURES:

Incandescent Lighting Illuminates Around Perimeter Of Dial
12 And 16V Compatible
Works w/Most 1989 And Later Ford; 1987 Mustang
Incl. Bulb And Socket Assembly; Red/Green Bulb Covers
Incl. Mounting Hardware/Instructions
Air-Core Electric Instruments Provide Quick And Accurate Readings

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60's to mid 90's), 0-30 ohm (early GM), 73-10 ohm (pre 90's Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.

Next generation instruments from Auto Meter combine our NASCAR proven racing movements with our award winning LED lighting technology to offer you the ultimate in Accuracy, Durability, Visibility and Styling.
