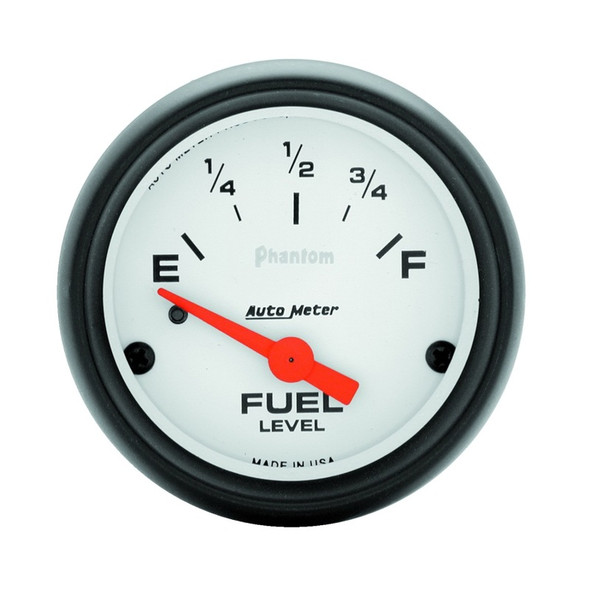

AutoMeter 5816 Phantom Electric Fuel Level Gauge

(No reviews yet) Write a Review
SKU:
BDHZ5816
UPC:
046074058165
MPN:
5816
Condition:
New
Width:
4.50 (in)
Height:
4.50 (in)
Depth:
4.50 (in)
  • AutoMeter 5816 Phantom Electric Fuel Level Gauge
  • AutoMeter 5816 Phantom Electric Fuel Level Gauge
$97.62
Frequently bought together:

Description

Fuel Gauge

Phantom Electric Fuel Level Gauge

Phantom Electric Fuel Level Gauge; 2-5/8 in.; White Dial Face; Fluorescent Red Pointer; White Incandescent Lighting; Electric Air-Core; 240 Ohms Empty /33 Ohms Full;


SPECIFICATIONS:
  • Analog Or Digital: Analog
  • Bezel Color: Black
  • Bezel Style: Super Bezel
  • Block Adapter Included: No
  • Bulb and Socket Number: 3220
  • Bulb Technology: Incandescent
  • Electric Or Mechanical: Electric
  • Face Color: White
  • Fuel Line Adapter Included: No
  • Gauge Adapter Included: No
  • Gauge Type: Fuel Level
  • Illuminated: Yes
  • Lens: Flat Clear
  • Light Covers Number: 3244/3215
  • Lighting Color: White Incandescent
  • Lighting Type: Incandescent
  • Liquid Filled: No
  • Mounting Bracket Number: 3245
  • Movement Type: Electric Air-Core
  • Number Color: Black
  • Outer Bezel Diameter: 2.875 in.
  • Pointer Color: Fluorescent Red
  • Size: 2.625 in.
  • Sweep: Short
  • Voltage: 8-18 V
  • WARNING CA Proposition 65: Yes
  • WARNING CA Proposition 65 Message: WARNING: This product can expose you to chemicals; which are known to the State of California to cause cancer. For more information; visit www.p65warnings.ca.gov.

FEATURES:
  • Incandescent Lighting Illuminates Around Perimeter Of Dial
  • 12 And 16V Compatible
  • Works w/240E/33F Ohm Senders Including PN[3262]
  • Incl. Bulb And Socket Assembly; Red/Green Bulb Covers
  • Incl. Mounting Hardware/Instructions
  • Air-Core Electric Instruments Provide Quick And Accurate Readings

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60's to mid 90's), 0-30 ohm (early GM), 73-10 ohm (pre 90's Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.

Next generation instruments from Auto Meter combine our NASCAR proven racing movements with our award winning LED lighting technology to offer you the ultimate in Accuracy, Durability, Visibility and Styling.
