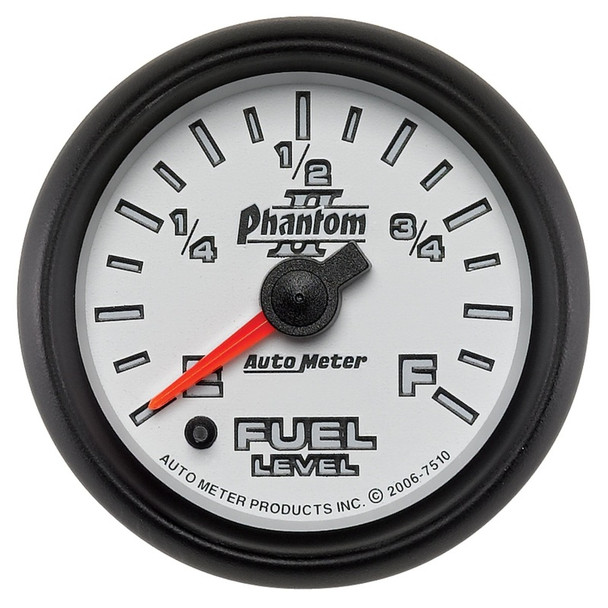

AutoMeter 7510 Phantom II Electric Programmable Fuel Level Gauge

(No reviews yet) Write a Review
SKU:
BDHZ7510
UPC:
046074075100
MPN:
7510
Condition:
New
Width:
4.50 (in)
Height:
4.50 (in)
Depth:
4.75 (in)
  • AutoMeter 7510 Phantom II Electric Programmable Fuel Level Gauge
  • AutoMeter 7510 Phantom II Electric Programmable Fuel Level Gauge
  • AutoMeter 7510 Phantom II Electric Programmable Fuel Level Gauge
  • AutoMeter 7510 Phantom II Electric Programmable Fuel Level Gauge
  • AutoMeter 7510 Phantom II Electric Programmable Fuel Level Gauge
  • AutoMeter 7510 Phantom II Electric Programmable Fuel Level Gauge
  • AutoMeter 7510 Phantom II Electric Programmable Fuel Level Gauge
  • AutoMeter 7510 Phantom II Electric Programmable Fuel Level Gauge
  • AutoMeter 7510 Phantom II Electric Programmable Fuel Level Gauge
  • AutoMeter 7510 Phantom II Electric Programmable Fuel Level Gauge
MSRP: $188.26
$179.75
— You save $8.51
Frequently bought together:

Description

Fuel Gauge

Phantom II Electric Programmable Fuel Level Gauge

Phantom II Electric Programmable Fuel Level Gauge; 2-1/16 in.; White Dial Face; Fluorescent Red Pointer; White LED Lighting; Digital Stepper Motor; Programmable 0-280 Ohms;


SPECIFICATIONS:
  • Analog Or Digital: Analog
  • Bezel Color: Black
  • Bezel Style: Super Bezel
  • Block Adapter Included: No
  • Bulb Technology: LED
  • Electric Or Mechanical: Electric
  • Face Color: White
  • Fuel Line Adapter Included: No
  • Gauge Adapter Included: No
  • Gauge Type: Fuel Level
  • Illuminated: Yes
  • Lens: Flat Clear
  • Lighting Color: White
  • Lighting Type: LED
  • Liquid Filled: No
  • Mounting Bracket Number: 2230
  • Movement Type: Electric Digital Stepper Motor
  • Number Color: Black
  • Outer Bezel Diameter: 2.250 in.
  • Pointer Color: Fluorescent Red
  • Size: 2.3125 in.
  • Sweep: Full
  • Voltage: 8-18 V
  • WARNING CA Proposition 65: Yes
  • WARNING CA Proposition 65 Message: WARNING: This product can expose you to chemicals; which are known to the State of California to cause cancer. For more information; visit www.p65warnings.ca.gov.
  • Wire Harness Number: 5233

FEATURES:
  • Modern White LED Through-The-Dial Lighting
  • 12 And 16V Compatible
  • Incl. 20 ft. Wiring Harness
  • Incl. Mounting Hardware/Instructions
  • User Definable Resistance Between 0-280
  • Digital Stepper Motor Provides Unmatched Accuracy

Traditionally, paring the proper fuel level level gauge to the application could be a more difficult task than it needed to be. The AutoMeter Digital Stepper Motor Fuel Level Gauge drastically simplifies the process with it's easily configurable resistance range. With 7 common configurations stored in memory from the factory, the vast majority of all applications are covered. In the instance your fuel level sender is not included in these preconfigured ranges, an innovative custom calibration mode allows any sending unit that operates between 0 and 280 ohms, empty or full, to be easily paired. Our 'snapshot' programming method will allow you to capture the empty and full readings and the gauge does the rest. No matter your application, there simply isn't an easier solution for fuel level monitoring available on the market. A direct plug in wiring harness is included for ease of installation.

Next generation instruments from Auto Meter combine our NASCAR proven racing movements with our award winning LED lighting technology to offer you the ultimate in Accuracy, Durability, Visibility and Styling.
