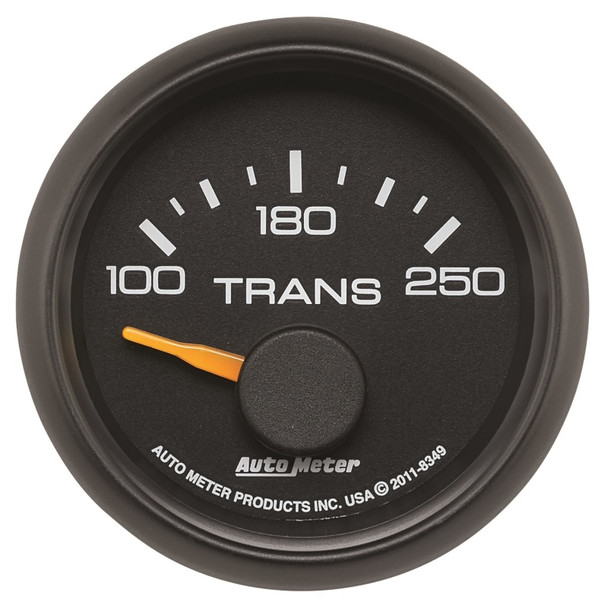

AutoMeter 8349 Chevy Factory Match Electric Transmission Temperature Gauge

(No reviews yet) Write a Review
SKU:
BDHZ8349
UPC:
046074083495
MPN:
8349
Condition:
New
Width:
4.50 (in)
Height:
4.50 (in)
Depth:
4.75 (in)
  • AutoMeter 8349 Chevy Factory Match Electric Transmission Temperature Gauge
  • AutoMeter 8349 Chevy Factory Match Electric Transmission Temperature Gauge
  • AutoMeter 8349 Chevy Factory Match Electric Transmission Temperature Gauge
  • AutoMeter 8349 Chevy Factory Match Electric Transmission Temperature Gauge
  • AutoMeter 8349 Chevy Factory Match Electric Transmission Temperature Gauge
  • AutoMeter 8349 Chevy Factory Match Electric Transmission Temperature Gauge
  • AutoMeter 8349 Chevy Factory Match Electric Transmission Temperature Gauge
  • AutoMeter 8349 Chevy Factory Match Electric Transmission Temperature Gauge
  • AutoMeter 8349 Chevy Factory Match Electric Transmission Temperature Gauge
  • AutoMeter 8349 Chevy Factory Match Electric Transmission Temperature Gauge
  • AutoMeter 8349 Chevy Factory Match Electric Transmission Temperature Gauge
  • AutoMeter 8349 Chevy Factory Match Electric Transmission Temperature Gauge
$116.80
Frequently bought together:

Description

Auto Trans Oil Temperature Gauge

Chevy Factory Match Electric Transmission Temperature Gauge

Chevy Factory Match Electric Transmission Temperature Gauge; 2-1/16 in.; Black Dial Face; Orange Pointer; White LED Lighting; Electric Air-Core; 100-250 Degree F;


SPECIFICATIONS:
  • Adapters Included: Yes
  • Analog Or Digital: Analog
  • Anti-Glare Enclosure Included: No
  • Bezel Color: Black
  • Bezel Style: Super Bezel
  • Bulb Technology: LED
  • Electric Or Mechanical: Electric; Air-Core
  • Face Color: Black
  • Fitting Type: 0.500 in. NPT
  • Fittings Included: Yes
  • Font Color: White
  • Gauge Type: Transmission Temperature
  • Hole Size: 52.4mm
  • Lens: Flat Clear
  • Lighting Color: White
  • Lighting Type: LED
  • Measurement: US
  • Movement Type: Electric Air-Core
  • Number Color: White
  • Outer Bezel Diameter: 2.250 in.
  • Pointer Color: Orange
  • Sending Unit Included: Yes
  • Size: 2.3125 in.
  • Sweep: Short
  • Type: Electrical
  • Voltage: 8-18 V
  • WARNING CA Proposition 65: Yes
  • WARNING CA Proposition 65 Message: WARNING: This product can expose you to chemicals; which are known to the State of California to cause cancer. For more information; visit www.p65warnings.ca.gov.

FEATURES:
  • Factory Matched LED Through-The-Dial Lighting
  • 12 And 16 Volt Compatible
  • Incl. 1/8 in; NPT Temp Sender
  • Incl. 3/8 And 1/2 in. NPT Adapters
  • Incl. Mounting Hardware/Installation Instructions
  • Air-Core Electric Instrument Provide Quick And Accurate Readings

Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you're towing or simply trying to harness the power of a built or boosted motor, AutoMeter's Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. A single wire 1/8 in. NPT temperature sender included to be installed in your transmission, transmission pan or with an optional transmission cooler line manifold is available for easy installation into a transmission cooler hard line.

Next generation instruments from Auto Meter combine our NASCAR proven racing movements with our award winning LED lighting technology to offer you the ultimate in Accuracy, Durability, Visibility and Styling.
