AutoMeter 880351 Ford Masterpiece Electric Fuel Level Gauge
- SKU:
- BDHZ880351
- UPC:
- 046074143595
- MPN:
- 880351
- Condition:
- New
- Width:
- 4.50 (in)
- Height:
- 4.50 (in)
- Depth:
- 4.75 (in)
Description
Fuel Gauge

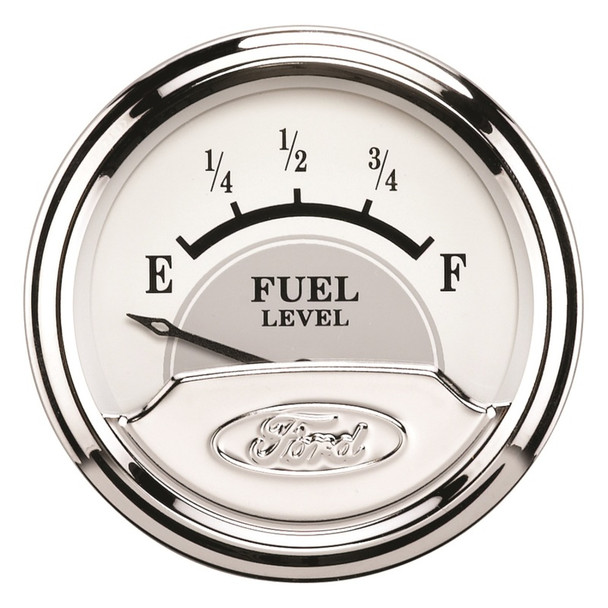

Ford Masterpiece Electric Fuel Level Gauge
Ford Masterpiece Electric Fuel Level Gauge; 2-1/16 in.; White Dial Face; Black Pointer; White Incandescent Lighting; Electric Air-Core; 240 Ohms Empty /33 Ohms Full;
- Analog Or Digital: Analog
- Bezel Color: Chrome
- Bezel Style: Street Rod
- Block Adapter Included: No
- Bulb and Socket Number: 3220
- Bulb Technology: Incandescent
- Electric Or Mechanical: Electric
- Face Color: White
- Fuel Line Adapter Included: No
- Gauge Adapter Included: No
- Gauge Type: Fuel Level
- Illuminated: Yes
- Lens: Flat Clear
- Light Covers Number: 3244/3215
- Lighting Color: White Incandescent
- Lighting Type: Incandescent
- Liquid Filled: No
- Mounting Bracket Number: 2230
- Movement Type: Electric Air-Core
- Number Color: Black
- Outer Bezel Diameter: 2.234375 in.
- Pointer Color: Black
- Size: 2.3125 in.
- Sweep: Short
- Voltage: 8-18 V
- WARNING CA Proposition 65: Yes
- WARNING CA Proposition 65 Message: WARNING: This product can expose you to chemicals; which are known to the State of California to cause cancer. For more information; visit www.p65warnings.ca.gov.
- Ford Racing Officially Licensed Product
- Modern White LED Through-The-Dial Lighting
- 12 And 16 Volt Compatible
- Incl. 20 ft. Wiring Harness
- Incl. Mounting Hardware/Installation Instructions
- User Definable Resistance Setting Program Between 0-280 Ohms
- Digital Stepper Motor Provides Unmatched Accuracy
One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60's to mid 90's), 0-30 ohm (early GM), 73-10 ohm (pre 90's Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
Next generation instruments from Auto Meter combine our NASCAR proven racing movements with our award winning LED lighting technology to offer you the ultimate in Accuracy, Durability, Visibility and Styling.
